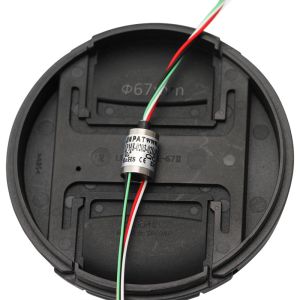

Super Miniature Electrical Slip Ring IP40 LPMS-04C-03

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPMS-04C-03(JP19-014-15HW)
Certification :	ISO/CE/RoHS/UL
Price :	Negotiable
Payment Terms :	T/T, C/C, Paypal
Supply Ability :	500 pieces / week
Delivery Time :	2 weeks ARO

Add to Cart

Product Details
Company Profile

Super Miniature Electrical Slip Ring IP40 LPMS-04C-03

As a key rotating component in Mobile phone, Camera Security Stretching Devices, the slip ring plays an important role in ensuring the integrity and rapidity of data transmission during 360° rotation. The super miniature units have been developed to provide a perfect solution for the transmission of power and signal for devices with limited installation space. The slip ring is of high quality and reliability, certified by ISO9001:2008/ ISO14001:2015 / UL.

Product parameter table:

Electrical & Electronics		Mechanical
Circuits	Total : 3 circuits ; 3 circuits*1A	Rotating Speed	0~300rpm
Rating Voltage	0-6VAC/DC	Contact Material	Gold To Gold
Dynamic Resistance Fluctuation Value	35MΩ	Housing Material	Engineering Plastics
Dynamic Resistance Fluctuation Value	35MΩ	Lead Wire Length	Rotor side: 80mm Stator side:25/25/35mm
Lead Wire Size	AWG28 # silver plated copper UL,	/
Environmental		Others
Temperature	-20°C~+60°C	Life span	Customizable
Humidity	≤60%RH	Note: "P" stands for power, "S" stands for signal
Protection grade	IP40	Note: "P" stands for power, "S" stands for signal

Main Applications:

Intelligent Robots
Commercial UAV
Manual stabilizer
VR devices

Product Tags:

compact slip ring

mini slip ring

Super Miniature Electrical Slip Ring IP40 LPMS-04C-03
